The TE series consists of a stainless-steel cannula with a double helix polypropylene hub. This premium dispensing tip line is burr-free and has an electro-polished cannula for unobstructed and consistent material flow. In addition, they are silicone and chloride free.

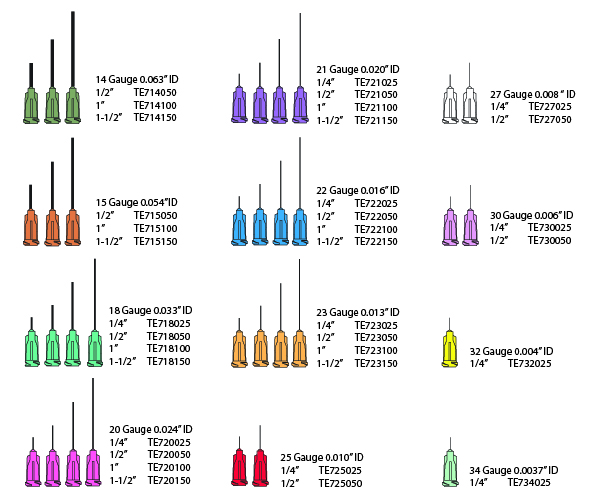

Different TE Dispending Tips and their specifications

1. 14 Gauge 0.063” ID- 1/2” TE714050, 1” TE714100, 1-1/2” TE714150
2. 21 Gauge 0.020” ID- 1/4” TE721025, 1/2” TE721050, 1” TE721100, 1-1/2” TE721150.
3. 27 Gauge 0.008 “ ID- 1/4” TE727025, 1/2” TE727050.
4. 15 Gauge 0.054” ID- 1/2” TE715050, 1” TE715100, 1-1/2” TE715150.
5. 22 Gauge 0.016” ID- 1/4” TE722025, 1/2” TE722050, 1” TE722100, 1-1/2” TE722150.
6. 30 Gauge 0.006” ID- 1/4” TE730025, 1/2” TE730050.
7. 18 Gauge 0.033” ID- 1/4” TE718025, 1/2” TE718050, 1” TE718100, 1-1/2” TE718150.
8. 23 Gauge 0.013” ID- 1/4” TE723025, 1/2” TE723050, 1” TE723100, 1-1/2” TE723150.
9. 32 Gauge 0.004” ID- 1/4” TE732025.
10. 20 Gauge 0.024” ID- 1/4” TE720025, 1/2” TE720050, 1” TE720100, 1-1/2” TE720150.
11. 25 Gauge 0.010” ID- 1/4” TE725025, 1/2” TE725050.
12. 34 Gauge 0.0037” ID – 1/4” TE734025.

Product Data Sheet for TE Syringe dispensing Tips

Always order dispensing tips by gauge size https://bergdahl.com/wp-content/uploads/2017/09/TE_Dispensing-Tips_ba_09-17.pdf, not color. Different manufacturers use different colors for the double helix hubs.

For more information about these products, contact Bergdahl Associates, Inc.
