Standard nozzles have a 1/4′′ NPT male thread and are precisely molded from natural polyethylene to match all Techcon cartridges or comparable (Semco) cartridges. On request, color nozzles are available.

Standard Nozzles Standard nozzles are precision molded from natural polyethylene and have 1/4″ NPT male thread to fit all Techcon cartridges or equivalent. Color nozzles are available upon request.

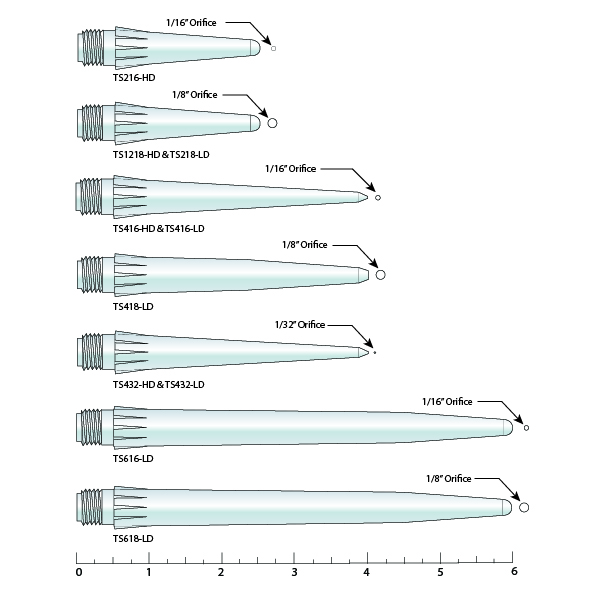

Descriptions of the standard nozzles for different part numbers

1. TS216-HD- 2″ (50.8mm) X 1/16″ (1.6mm), HDPE
2. TS218-HD – 2″ (50.8mm) X 1/8″ (1.4mm), HDPE
3. TS218-LD – 2″ (50.8mm) X 1/8″ (1.4mm), LDPE
4. TS416-HO-HD – 4″ (101.6mm) X 1/16″ (1.6mm), HDPE
5. TS416-HO-LD – 4″ (101.6mm) X 1/16″ (1.6mm), LDPE
6. TS418-HO-LD – 4″ (101.6mm) X 1/8″ (1.4mm), LDPE
7. TS432-HO-HD – 4″ (101.6mm) X 1/32″ (0.8mm), HDPE
8. TS432-HO-LD – 4″ (101.6mm) X 1/32″ (0.8mm), LDPE
9. TS490-HO-LD – 4″ (101.6mm) X 3/32″ (2.4mm), LDPE
10. TS616-HO-LD – 6″ (152.4mm) X 1/16″ (1.6mm), LDPE
11. TS618-HO-LD – 6″ (152.4mm) X 1/16″ (1.4mm), LDPE

Techcon Nozzle Product Guide (pdf)

For more information about these products, contact Bergdahl Associates, Inc.
